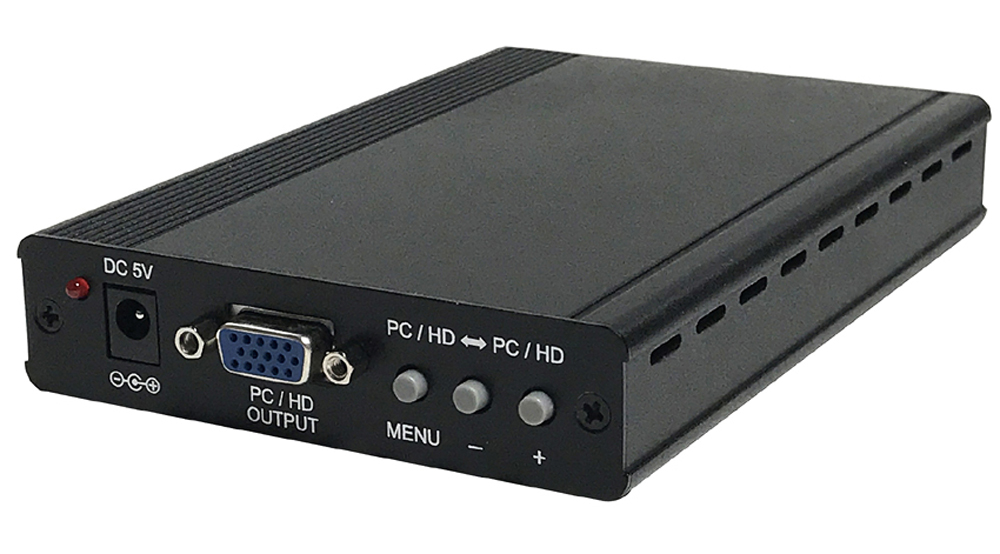

PC VGA RGBHV to HDTV Component Video 720p/1080p Converter Scaler

The output resolution and refresh rate is manually selectable via push buttons and on-screen system menu.

This RGB CGA VGA YPbPr video scaler can help users connect their computer to a HDTV display via component video cable for big screen presentation or connect an arcade game machine or component video device such as DVD or Blu-ray player to VGA monitor or projector for display.

Selectable Component Video YPbPr Output And VGA Output
This PC HD video scaler can handle your HDTV and PC applications nicely with flexible video signal cross conversion between CGA, VGA and component RGB or YPbPr video input.

It can be set to output in HD/SD component video format or VGA format.

A d-sub 15-pin VGA to 3 RCA component video adapter cable is supplied for component video input or component video output use.

15Khz CGA To VGA Component Video Converter
An important function of this scaler is to upgrade the legacy 15Khz CGA type RGB video signals from sources like arcade game boards to high-resolution VGA pixels or component YPbPr video signal.

Legacy RGB devices including arcade game boards or older gaming computers such as Amiga, Atari, etc with CGA type signal can be up converted by this scaler nicely at high VGA or component video resolution for displaying on LCD monitor, projector or LCD TV.

The supported CGA RGB input can be RGBHV, RGB H+V or RGsB (sync on G).

[Note]: This converter is designed specially for CGA type signal. The horizontal and vertical frequency of the CGA input must be either Hf=15.734kHz with Vf=60Hz or Hf=15.625kHz with Vf=50Hz.

PC VGA To Component Video Scan Converter
This scaler can also convert computer VGA type signal into component YPbPr or YUV format at selectable HD resolution up to 1080p for common application such as displaying computer VGA output on a large-screen HD TV through component video cable hookup..

Component YUV YPbPr Video To VGA RGBHV Scaling
This scaler can also convert component YPbPr or YUV video to selectable VGA resolutions for common application such as displaying HD component video sources such as Blu-ray player on a VGA display such as LCD monitor or projector.

Computer VGA To VGA Scaling
This unit can scale up or scale down the VGA output resolution from computer or CCTV DVR.

The VGA output level from this video scaler can be manually selected such from 640x480, 800x600, 1024x768, 1280x720, 1280x800, 1280x1024, 1600x1024, 1600x1200 and up to 1920x1200 pixels.

Easy On-Screen Setup Menu Control
The integral processor provides easy manual operation via push buttons on the front panel for control over multiple signal parameters.

All the main control functions includes:

• Contrast, Brightness, Saturation, Hue, Sharpness
• Color adjustment for Red, Blue and Green color level control.
• 5 selectable scale modes:
  • Overscan mode used to ensure no black band around the screen border.
  • Underscan mode used to ensure full picture content presented within screen border.
  • Letterbox screen mode
  • Panscan screen mode
  • Full screen mode
• Video output resolution selection: user can select VGA output from 640x480 to 1920x1200 pixels or HD component YPbPr output from 480i to 1080p.
• On-Screen Menu positioning, background and display time period.

• All-in-1 video format converter and scaler solution for CGA RGB, VGA/RGBHV and HD component video feeds.
• Supports RGB inputs in the format of RGBHV, RGB H+V or RGsB(sync on G).
• Supports standard CGA type RGB signals that have 15K.62/15.73hz(Hf) with 50/60hz(Vf).
• Supports legacy computers such as Amiga, Atari, etc with compatible RGB output timing.
• Great replacement display solution for those older CGA type RGB equipments.
• Supports video format cross conversion between VGA and component video.
• Supports VGA to VGA up/down scaling and component video to component video up/down scaling.
• Converting computer VGA pixels to HD component video for big screen display.
• Scale PC or HDTV resolutions up or down to fit your needs.
• Selectable VGA or component video output resolutions with resolution up to 1920x1200 or 1080p.
• Converting component video to VGA type for LCD monitor or projector displays.
• Displaying computer screen on a HDTV display through component video connection.
• Auto detection of video input format and resolution.
• Instant video output with no lags.
• Motion video adaptive de-interlacer with smooth low-angle edge for high video definition viewing on virtually any HDTV, Plasma, Digital or PC Display.
• Automatic 3:2 pull-down and 2:2 pull-down detection and recovery.
• Built-in system memory for keeping user's last configuration after power-off.
• Easy on-screen OSD setup menu for input/out format selection, color element adjustment and so on.
• Universal power supply provided with 110V to 240V AC input with DC 5V 2.6A output.

• Video Input:

  • CGA via using the optional DB9 to D-sub 15-pin adapter cable
  • VGA
  • YPbPr component video input via using the supplied component video adapter cable
• Video Input Format Support:
  • CGA (Hf=15.734kHz with Vf=60Hz or Hf=15.625kHz with Vf=50Hz)
  • VGA/RGBHV
  • YPbPr/YCbC
• Video Output Format Support:
  • VGA/RGBHV
  • YPbPr/YCbC component video output via using the supplied component video adapter cable
• Video Input Resolution Support:
  • 640x480 at 60/72/75/85Hz
  • 800x600 at 56/ 60/72/75/85Hz
  • 1024x768 at 60/70/75/85Hz
  • 1280x1024, 1280x720, 1280x800 at 60Hz
  • 1680x1050, 1680x1200 at 60Hz
  • 1920x1080, 1920x1200 at 60Hz
  • 480i/480p
  • 576i/576p
  • 720p(50/60Hz)
  • 1080i, 1080p(50/60Hz)
• YPbPr + VGA Output Resolution Support:
  • 640x480 at 60/72/75/85Hz
  • 800x600 at 56/ 60/72/75/85Hz
  • 1024x768 at 60/70/75/85Hz
  • 1280x1024, 1280x720, 1280x800 at 60Hz
  • 1680x1050, 1680x1200 at 60Hz
  • 1920x1080, 1920x1200 at 60Hz
  • 480i/480p
  • 576i/576p
  • 720p(50/60Hz)
  • 1080i, 1080p(50/60Hz)
• On-Screen Menu Control:
  • Contrast, Brightness, Saturation, Hue, Sharpness
  • Color adjustment for Red, Blue and Green color level control.
  • 5 selectable scale modes:
    • Overscan mode used to ensure no black band around the screen border.
    • Underscan mode used to ensure full picture content presented within screen border.
    • Letterbox screen mode
    • Panscan screen mode
    • Full screen mode
  • Video output resolution selection: user can select VGA output from 640x480 to 1920x1200 pixels or HD component YPbPr output from 480i to 1080p.
  • On-Screen Menu positioning, background and display time period.
• Power Supply: 110V to 240V AC input with DC 5V 2.6A output

• video scaler unit
• User manual
• VGA cable
• 3 RCA to 15-pin D-sub adapter cable for component video input or output
• AC power adaptor
