Premium 8-Way BNC Video Splitter For HD SD Video
This 8-way HD and SD video splitter is designed for HD camera video signal distribution and regular standard video broadcasting use for presentations, video entertainment system and surveillance system.
It supports both HD surveillance cameras (HD-TVI, AHD, HD-CVI types) and analog BNC/RCA type video feeds or cameras up to 4K.
The built-in signal booster enhances the video signal levels and provides multiple sharp and crystal clear outputs like the original input for simultaneous broadcasting for display on video monitors and video recorders.
 |
All-In-1 HD-TVI CVI AHD Analog Video Input
Support

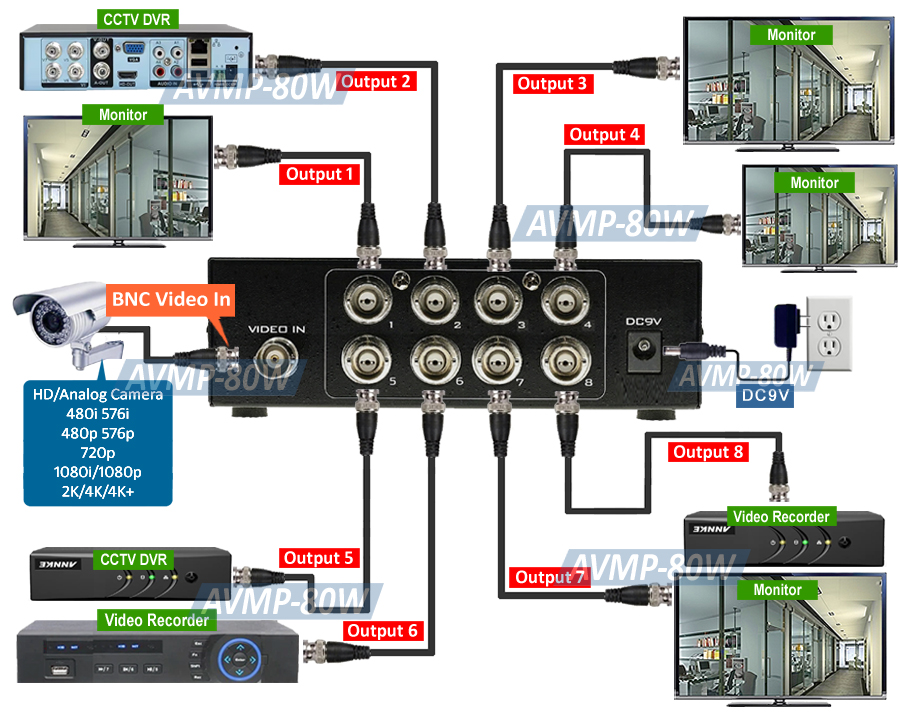

Build with 1 BNC type video input and 8 BNC type video outputs.
The BNC video input of this 8-way video splitter can accept either HD-TVI, AHD, HD-CVI type HD input or analog BNC/RCA composite video from camera, DVR or other video devices.
 |
Support HD/SD Video Resolutions
This video splitter supports wide range of video resolutions including
480i, 480p, 576i, 576p, 720p(50/60Hz), 1080i(50/59.94/60 Hz), 1080p
(23.97/24/25/29.97/30/50/59.94/60Hz) and up to 4K resolution.
Each BNC output resolution follows the original BNC video input resolution.
 |
Professional Video Distribution
The video source input will be buffered and replicated into total of 8 video outputs with excellent signal strength and
same high video quality maintained all the way for transmission.
NTSC PAL Video System
Support
This video splitter distributor supports worldwide video systems for all
NTSC, PAL and SECAM standards.
- A versatile HD camera video splitter for applications that require video distribution to multiple displays or location.
- Its BNC video input can accept HD-TVI, AHD, HD-CVI type HD input up to 4K or analog BNC/RCA composite video from HD/SD camera, DVR or other video devices.
- Total of 8 real time duplicated video outputs with no lags.
- The BNC video source input will be buffered and replicated into total of 8 video outputs with excellent signal strength and same high video quality maintained all the way for transmission.
- Sharp and clean output video quality is maintained all the way without degrading or loss.
- Supports wide range of video resolutions up to 1080p and 4K.
- Multiple splitters can be daisy chained together for large-scale installation to accommodate more displays.
- 50/60Hz scan rate support for all NTSC, PAL and SECAM systems.
- Compact size with metal enclosure.
- Video Input: Composite BNC video input x 1 (1V p.p. 75ohm)
- Video Outputs: Composite BNC video out x 8 (1V p.p. 75ohm)
- Video Resolution Support: 4K maximum
- Video Format Support:
- HD-TVI,
- HD-CVI
- AHD
- Analog BNC/RCA type composite video
- Horizontal/Vertical Sync: 5Vp-p max
- Power Supply: DC 9V 0.5A
- Dimension: 9.8"(W) x 4.2"(D) x 2"(H)
- 8-way video splitter unit
- Power adapter x 1
- User manual
