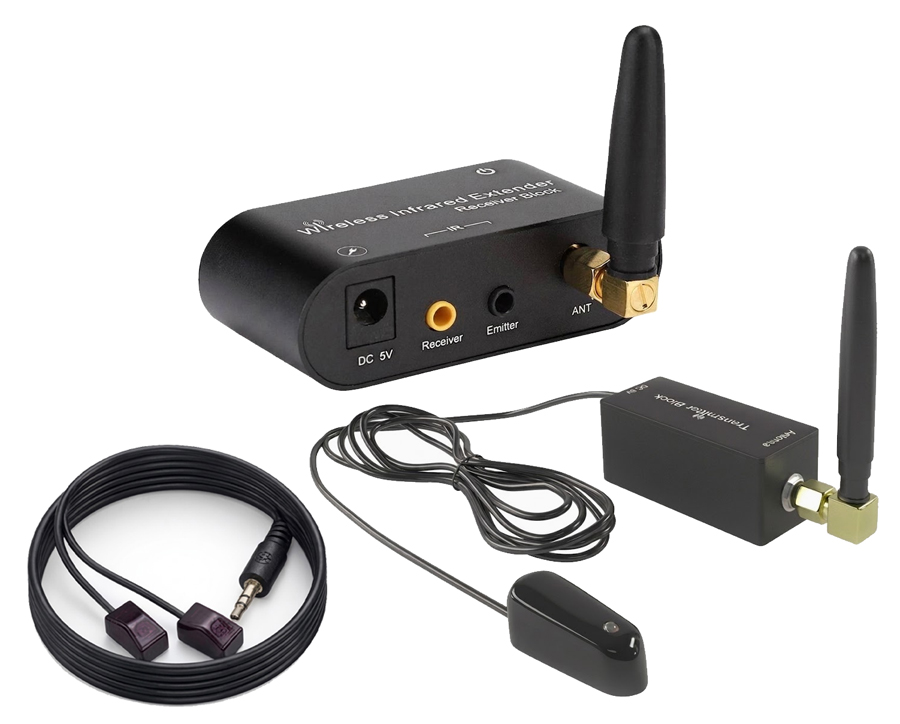

Premium Wireless IR Remote Control Extender Kit

Premium Wireless IR Remote Control Extender Kit
This wireless IR remote extender kit provides users with an ideal solution for using the existing IR remote to control the hidden or out-of-sight video audio equipments etc. behind the door, cabinet, closet or in another room.

This wireless IR remote extender kit uses the solid RF frequency that can pass through walls, doors, ceilings and corners so users can place any IR controlled device out of sight of the remote control and still be able to control it.

Streamline your home audio video setup by placing any IR controlled device out of sight of the remote control and still be able to control it.

Portable size with long IR blaster and IR receiver wires included. Maximum IR transmission range up to 200m or 656 feet for wide open setup.

Wide IR Frequency Range Support
This wireless IR kit supports devices operating with IR frequency range from 34kHz to 60kHz so it is compatible with most of the cable TV boxes, satellite receivers, AV receivers and electrical appliances including those newer dual-band IR remote signals.

Maximum 200M Long Distance Wireless Transmission
The maximum transmission distance can be up to 200 meters or 656 feet for wide open flat area.

The effective range will be reduced accordingly if there are walls, floors or other barriers for the RF signal to pass through.

IR Remote Local Pass-Through Extension

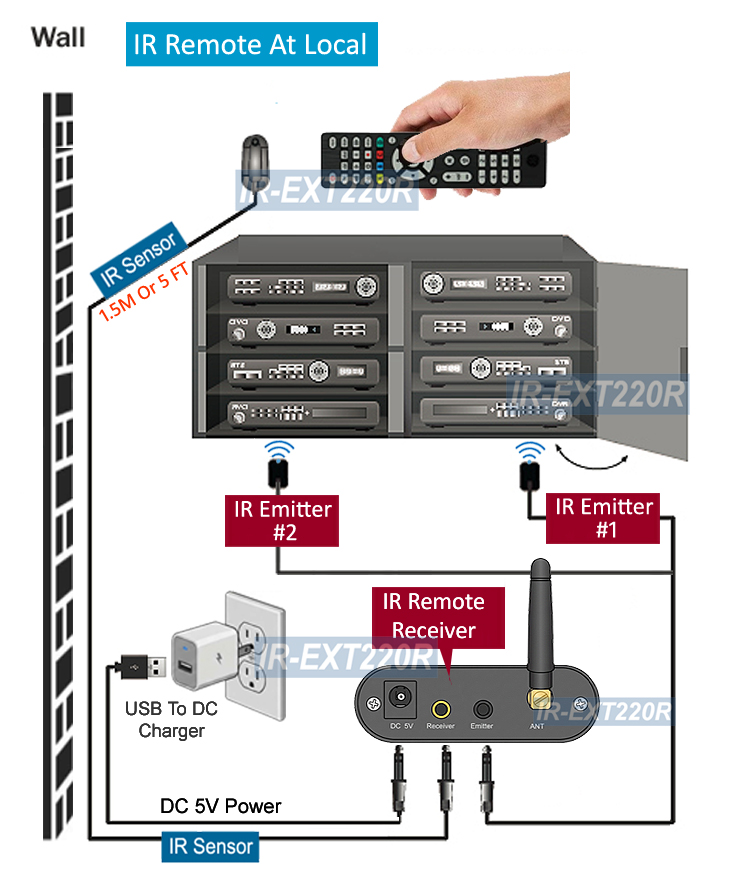

The IR receiver (RX) unit itself could be used a stand alone wired IR repeater for the local pass-through of IR remote signal to control devices that are hidden behind doors, cabinet or in hard-to-reach area.

Enhanced IR Communication
This kit can pick up IR remote control signal from 22 feet or 7 meters away, giving users the extra freedom and comfort.

Many-To-One And One-To-Many Setup
Each IR transmitter can work with multiple IR receivers as one-to-many setup or the other way around as many-to-one setup for multiple IR transmitter to work with 1 IR receiver.

270-Degree Wide-Angle
Its IR signal reception and blasting range is up to 270 degrees for both transmitter and receiver unit.

Detachable Antenna
This IR remote extender kit adopts the SMA connectors for flexible antenna hookup. Users have the option to choose different or bigger antenna for longer transmission and broader range of reception.

Easy Extender Wire Extension
The IR blaster/emitter wire used in the receiver unit has a 3.5mm plug.

If you need to extend this extender wire for longer distance, you can simply use longer 3.5mm audio extension cable for much longer distance.

• Premium wireless IR remote extender solution for using the existing IR remote to control the hidden or out-of-sight video audio equipments etc. located behind closed doors, cabinet, closet or in another room.
• Streamline your home audio video setup by placing any IR controlled device out of sight of the remote control and still be able to control it.
• Converting the IR remote signal into solid RF signal that can pass through walls, doors, ceilings and corners for longer distance.
• Maximum transmission distance can be up to 200 meters or 650 feet under unobstructed circumstance.
• Each IR transmitter can work with multiple IR receivers as one-to-many setup or the other way around as many-to-one setup for multiple IR transmitters working with 1 IR receiver.
• Support wide range of IR frequency from 34kHz to 60kHz so it is compatible with most of the cable boxes, satellite receivers and electrical appliances including those newer Dual Band IR signals.
• Detect IR remote control signal from 22 feet or 7 meters away, giving users the extra freedom and comfort.
• Portable size with included IR Blaster and IR Receiver extension cables allows easy and flexible placement anywhere in a home or office.
• Both the IR transmitter and receiver use SMA connectors for flexible antenna hookup.
• Users have the option to choose different or bigger antenna for longer transmission and broader range of reception.
• Both transmitter and receiver unit can be powered from USB or using the USB power cord with 5V DC wall charger included.
• IR sensor/receiver wire is 5 feet or 1.5m long with 3.5mm audio plug and can be further extended with longer 3.5mm audio extension cable if needed.
• IR blaster/emitter wire is 3.3 feet or 1m long and can be further extended with longer 3.5mm audio extension cable if needed.

• Power Supply: DC 5V, 0.5A
• Transmission Frequency:  433.92 MHz
• IR Carrier Frequency: 34KHz to 60KHz
• Emitting Frequency: 38kHz
• Max Transmission Distance: 660ft or 200 meters in clear line of sight setup
• IR Remote Distance: 22 feet or 7 meters
• Max Power Consumption: 1.8 Watts for each transmitter/receiver unit.
• IR Transmitter Size: 38mm x 20mm x 20mm with 5-ft long IR receiving dongle
• IR Receiver Size: 70mm x 33mm x 21mm
• Power Gain:  10 dBM
• Input Sensitivity: -85 dBm (min)

• IR remote transmitter and receiver unit
• IR sensor/receiver wire x 2 (each 5 feet or 1.5m long)
• IR blaster wire x 1 (3.3 feet or 1m long)
• USB to DC power cord x 2
• USB to AC wall charger x 2
• User manual
